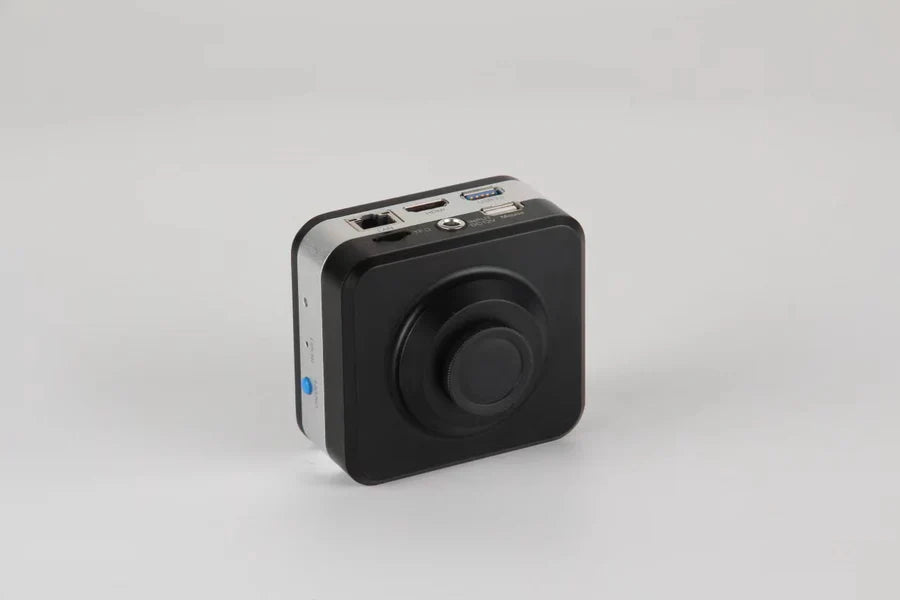

Moticam 4000X

Introducing the Moticam 4000X, the latest innovation in high-performance imaging designed to streamline your workflow and enhance your microscopy experience. This state-of-the-art camera delivers crisp, vibrant 4K live images (3840 x 2160 px), providing exceptional clarity and detail for your samples. Whether you're working in research, education, or professional applications, the Moticam 4000X offers unmatched efficiency and functionality.

With a simple HDMI connection, you can instantly display live images on a screen, eliminating the need for a computer. The camera comes equipped with intuitive on-board software that allows you to perform a variety of tasks directly from the HDMI display. Using a USB mouse, you can make real-time measurements, annotate images, adjust settings, and more, all without the hassle of a computer. This feature significantly speeds up your workflow and increases convenience by offering a seamless, self-contained system.

The Moticam 4000X is designed with practicality in mind, featuring an integrated SD card slot and multiple USB ports. This means you can easily save and organize images and videos directly to the camera’s SD card, bypassing the need for a computer. Whether you're capturing still images or recording videos, your data is securely stored and ready for review or sharing.

For added flexibility, the camera can also be connected to a Windows or Mac computer via USB, allowing you to view and manage your samples directly on your desktop. This dual connection option ensures that you can work in a variety of environments, whether you're in a laboratory, classroom, or office setting.

The Moticam 4000X combines cutting-edge technology with user-friendly features, providing a versatile solution for professionals seeking fast, efficient, and high-quality imaging. Whether you're capturing images for analysis, teaching, or documentation, the Moticam 4000X empowers you to work smarter, not harder.

• Model:- Moticam 4000X
• Sensor type:- CMOS
• Sensor size:- 1/2.8"
• Imaging area:- 6.4mm (diagonal)
• Capture resolution:- 8MP (3840x2160 pixels)
• Image capture resolution (on SD-card):- 8MP (3840x2160 pixels)
• Video capture resolution (on SD-card):- 1080P (1920x1080 pixels)
• Live display mode through USB:- 4K (3840x2160 pixels)
• Live display mode through Wi-Fi:- 4K (3840x2160 pixels)
• Live display mode through Ethernet:- 4K (3840x2160 pixels)
• Live display mode through HDMI:- 4K (3840x2160 pixels)
• Pixel Size:- 1.45 x 1.45μm
• Scan mode:- Progressive
• Shutter mode:- Rolling Shutter
• Data transfer:- HDMI, USB, Wi-Fi, Ethernet, Micro SD-card
• Max. frames per second (fps):- HDMI: 4K (3840x2160) @30fps
USB 3.0: 1920x1080 @30fps, 3840x2160 @25fps , Wi-Fi: 1920x1080 @25fps, 3840x2160 @12fps
• Exposure time :-0.03ms ~ 1000ms
• Operating temperature:- From -10 to +50 degrees Celsius non condensing
• Sensitivity:- 300mV with 1/30s
• Slot:- Micro SD-Card
• Buttons:- On/Off
• Support device:- TWAIN, SDK and Direct Show Driver
• Minimum computer requirements:- Core2, 2.8GHz, RAM memory 8GB
• Lens mount:- C-Mount
• Focusable lens:- 12mm
• Software:- On-board Software, Motic Images Plus 3.1 for Windows 10 and MAC OSX or higher and MotiConnect App for iOS and Android
• Functions:- Including exposure, gain, white balance, color adjustment, sharpness and denoising control, zoom, mirror, comparison, freeze, measure, cross, browse function
• Power supply:- 12V (External power supply)
• Package includes:- CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB 3.0 cable, Motic Images Plus 3.1
• Notes:- USB port for connecting a mouse to enable software control Transport and storage case
